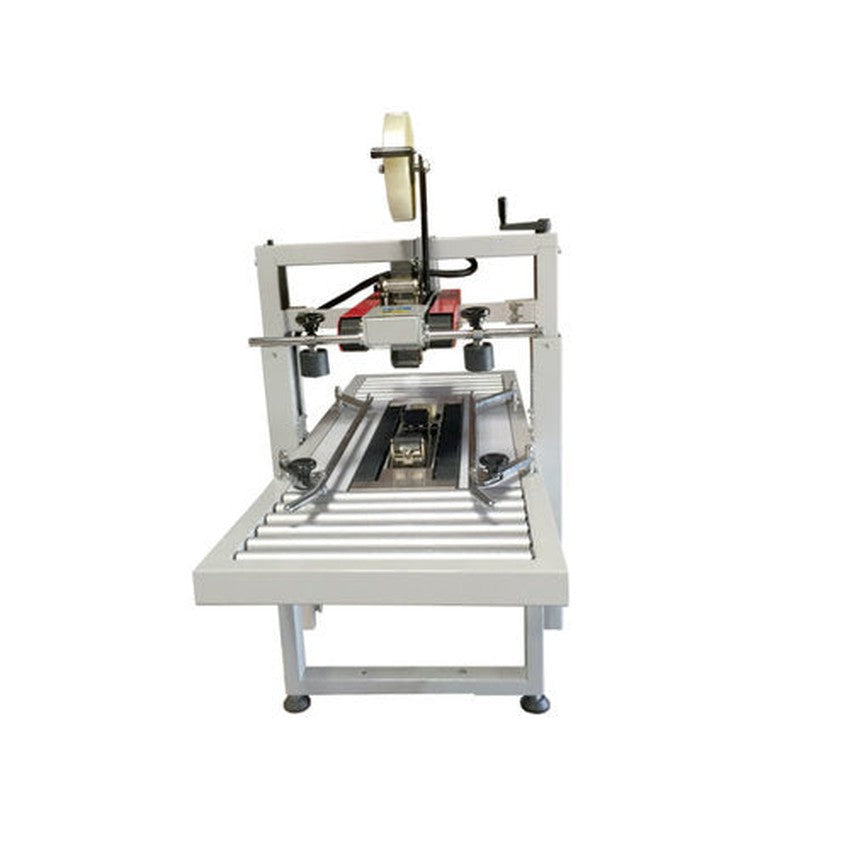

Sealer Sales Semi-Automatic Uniform Carton Sealer With Top And Bottom Drive Belts - (1 Count)
Sealer Sales Semi-Automatic Uniform Carton Sealer With Top And Bottom Drive Belts - (1 Count)

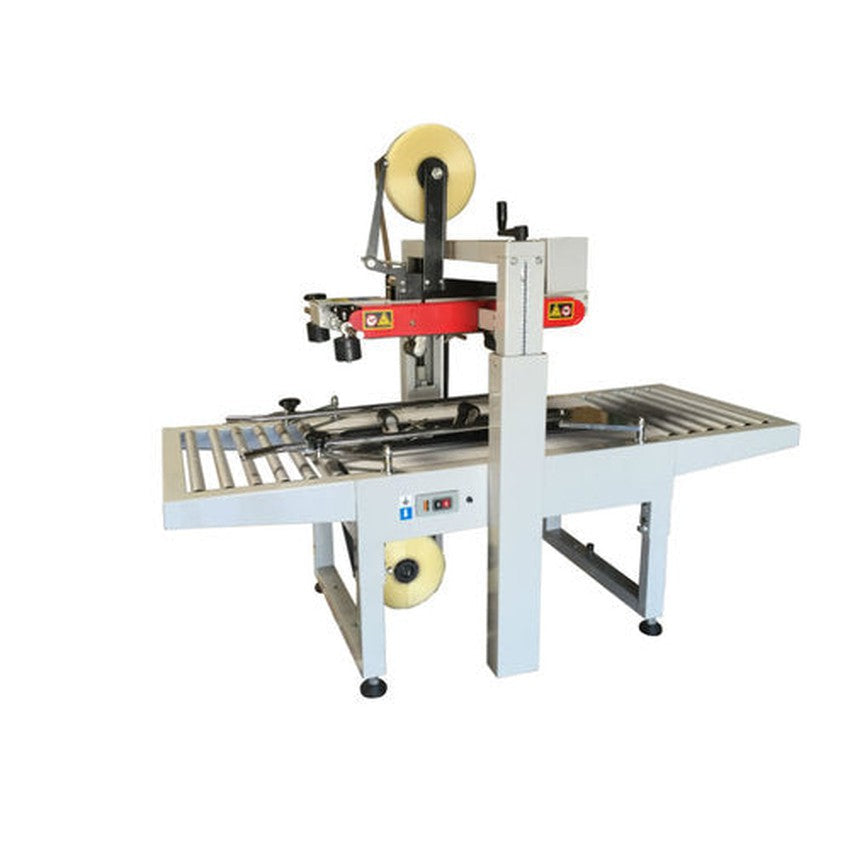

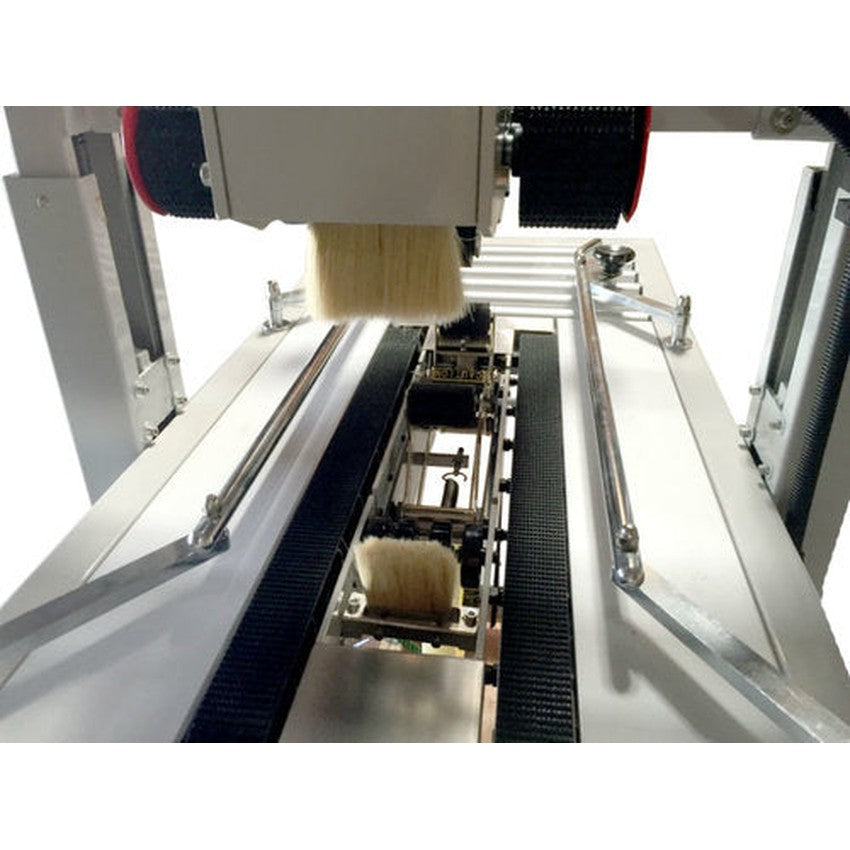

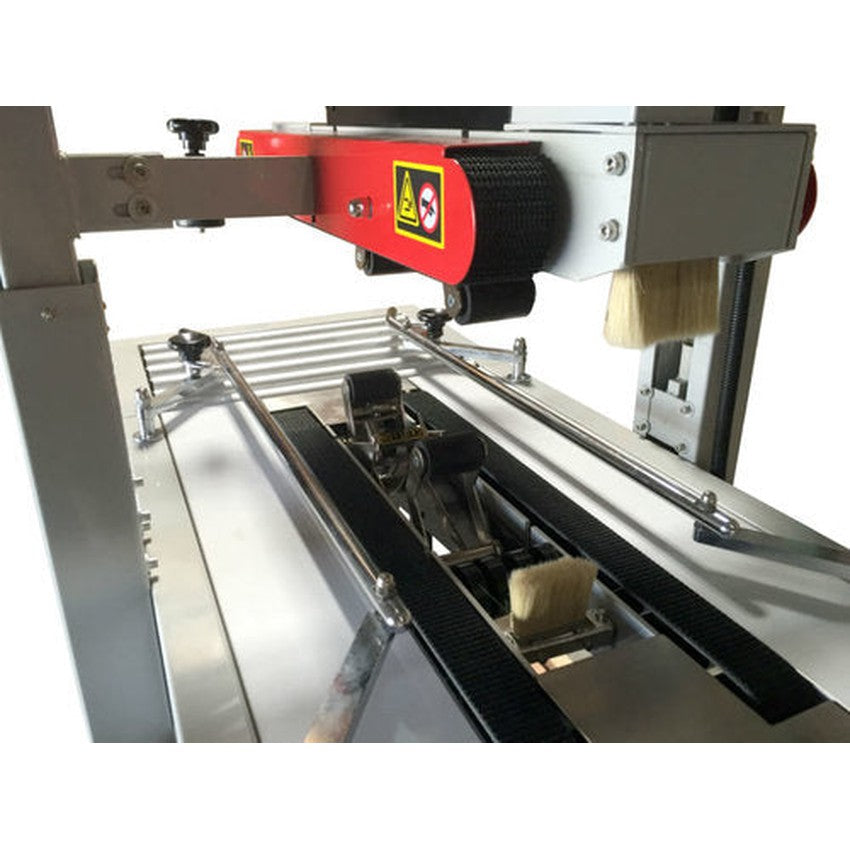

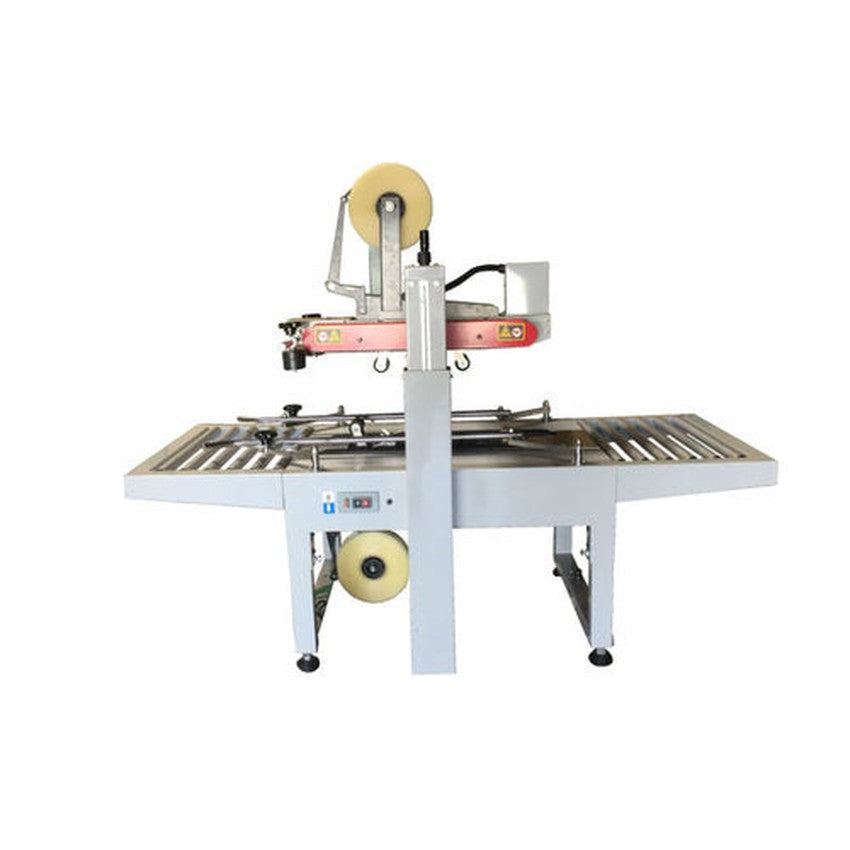

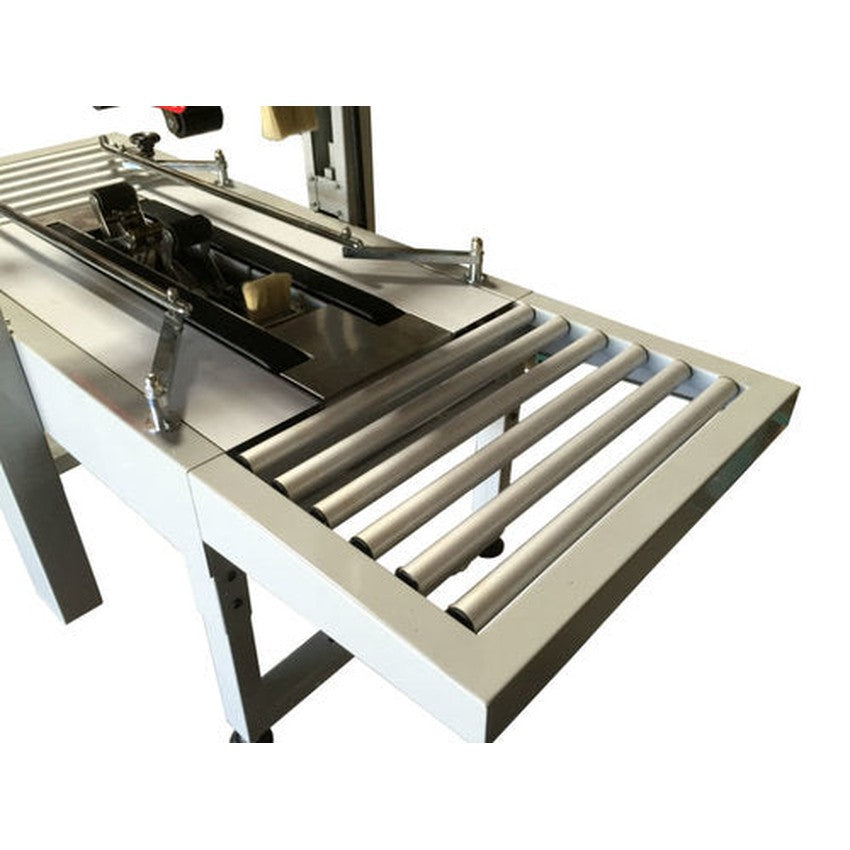

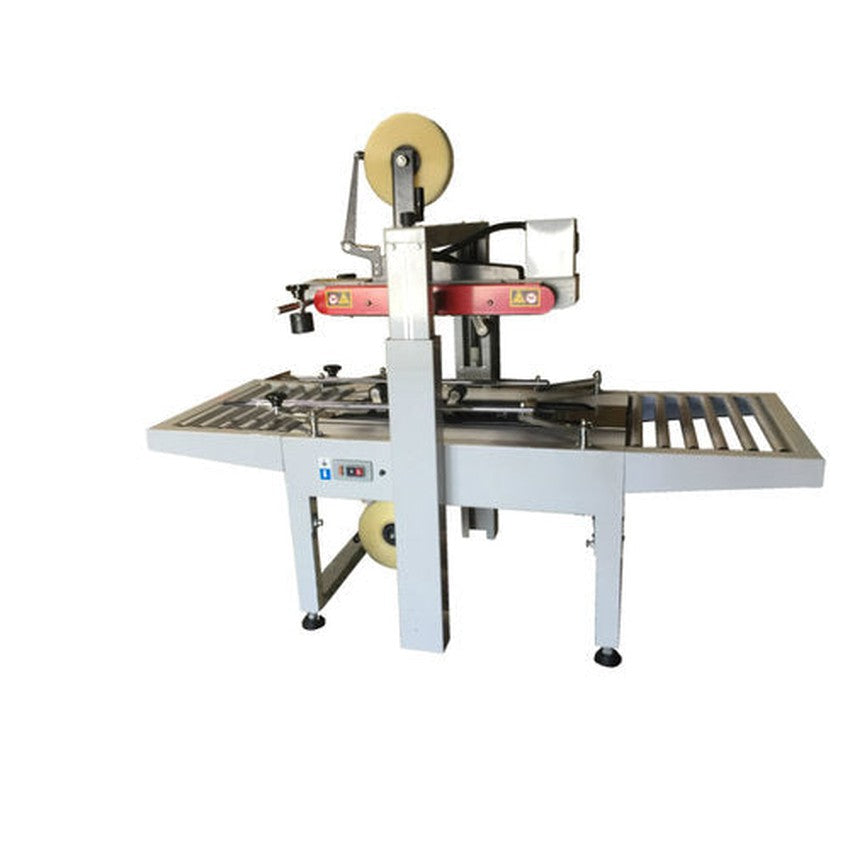

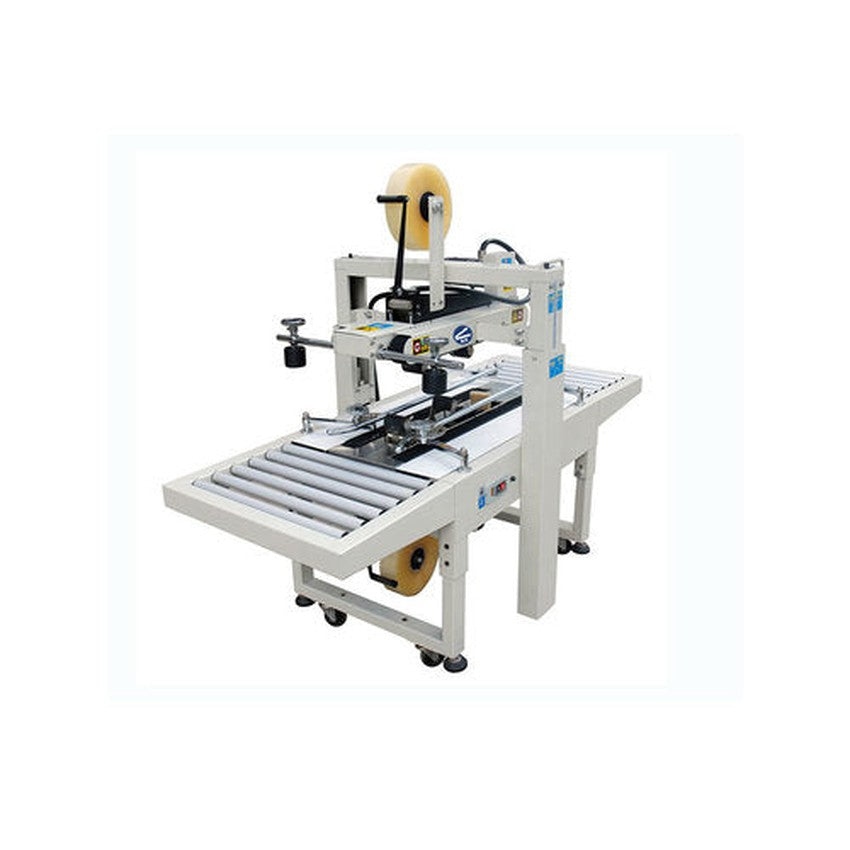

Our CS-Series of carton sealers are operator fed and designed for heavy duty applications. These machines are reliable, cost-effective and durable providing savings to your production process. More importantly, these machines provide a professional looking seal. The CS-6050 Semi-Automatic Uniform Carton Sealer with Easy Manual Carton Size Adjustment has a 4-belt design (2 top and 2 bottom). The machine comes complete with infeed/exit conveyors, casters, power cord, and plug.
The operator simply folds the top flats of the corrugated carton and feeds it into the machine. The CS-6050 applies a single tape to both the top and bottom of the case simultaneously. The CS-6050 can be easily adjusted in only seconds to process a different size carton. Excellent for taller boxes.
FEATURES:
-
Adjustable height of table
-
Heavy duty frame
-
Manually adjust height and width of machine for each box size
-
Suitable for taller cartons
-
Up and down driving
-
Operator feeds and folds flaps into machine
-
Optional: 3” tape head
-
Optional: stainless steel
-
Unit must ship via LTL freight only. Call us for rates.
Specifications:
Specifications | |
---|---|
Carton Size | |
Length | 6" to Infinite |
Width | 7" Min to 19.7" Max (2") |
Width | 7.9" Min to 19.7" Max (3") |
Height | 5.1" Min to 23.6" Max |
Machine Size | 69"L x 32"W x (38"-63")H |
Machine Speed | 65.6ft/min up to 15 cartons per minute |
Max Box Weight (lbs) | 55 |
Electrical | 110V / 1 Phase / 10 Amp |
Weight (lbs) | 385 |

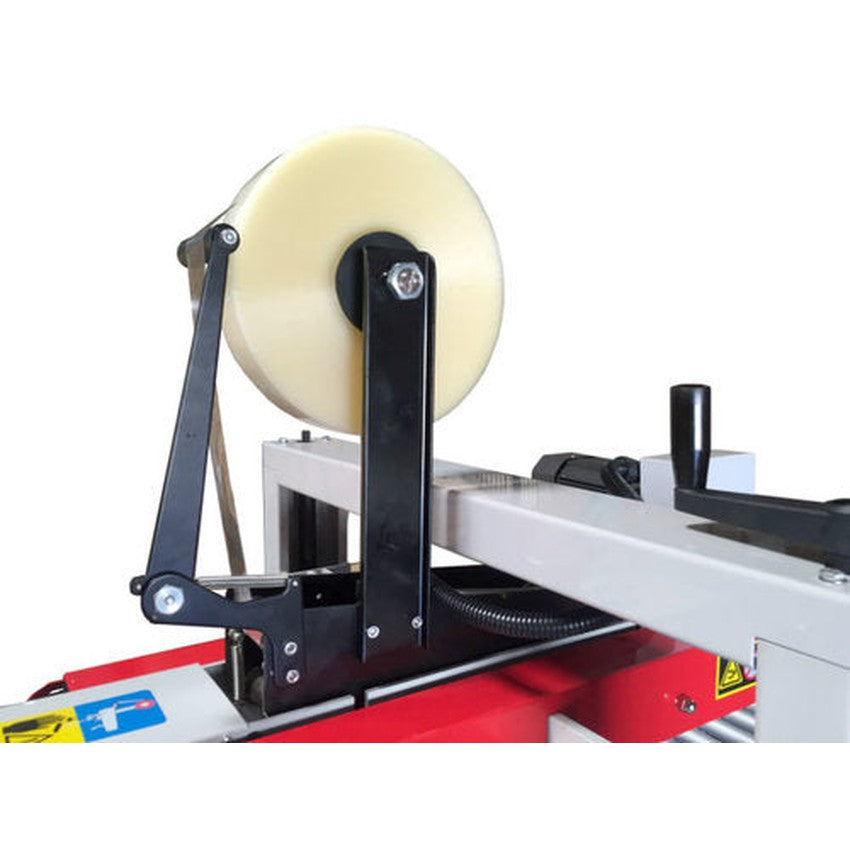

Tape Head Specs | 2" (48MM) Wide / 1,000 or 1,500 yards |
