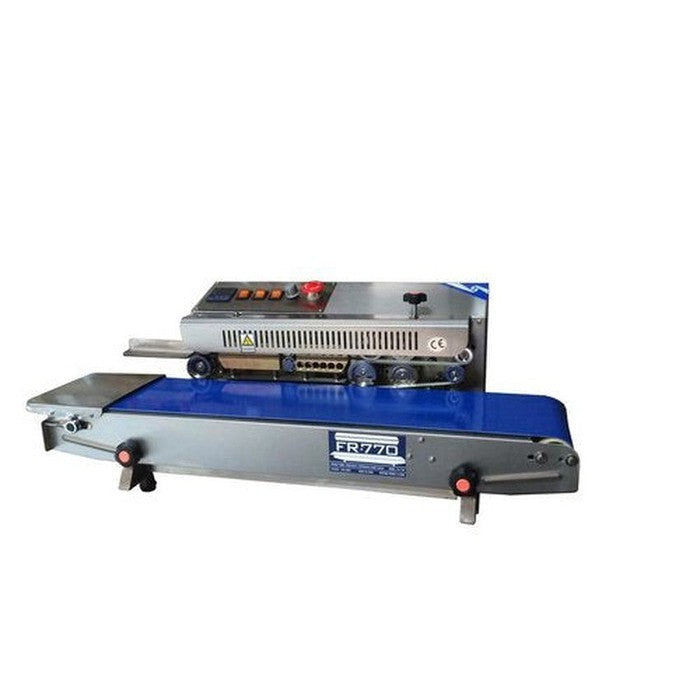

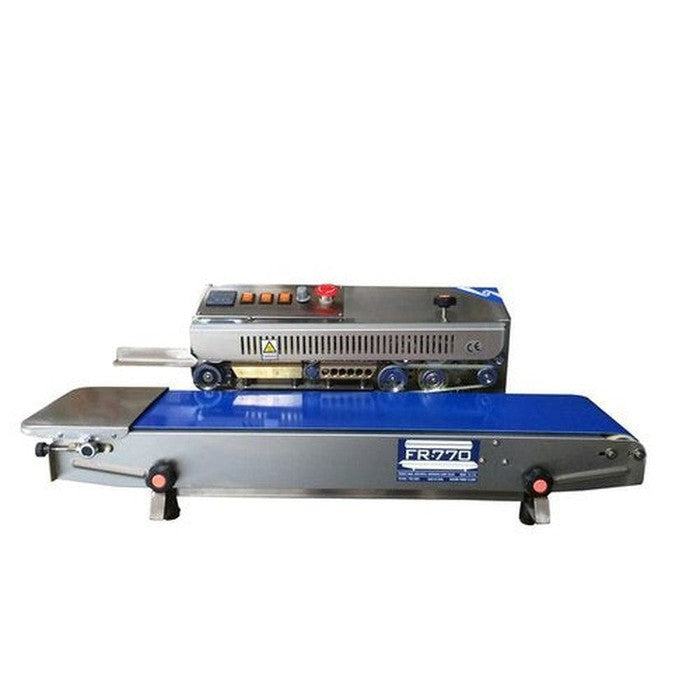

Sealer Sales Horizontal Band Sealer Embossing - Left Feed - (1 Count)
Sealer Sales Horizontal Band Sealer Embossing - Left Feed - (1 Count)
Suitable for sealing all types of plastic materials and bags. One of our most popular band sealers with a great value propositions. Can seal 20-26 6" wide poly bags per minute.
FEATURES:
-
Durable stainless steel
-
Easy to operate - minimal operator training
-
Fast warm up time
-
Seals any thermoplastic material including PE, PP, and laminates
-
Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality
-
Motorized rubber conveyor with speed control
-
Knurled pressure wheel rolls with variable pressure adjustment
-
One pair each of cooling and heating blocks
-
Sealing method - constant direct heat
-
Unit feeds left to right
-
Equipped with an emergency stop button
-
Includes wheel to emboss on seal line without ink
-

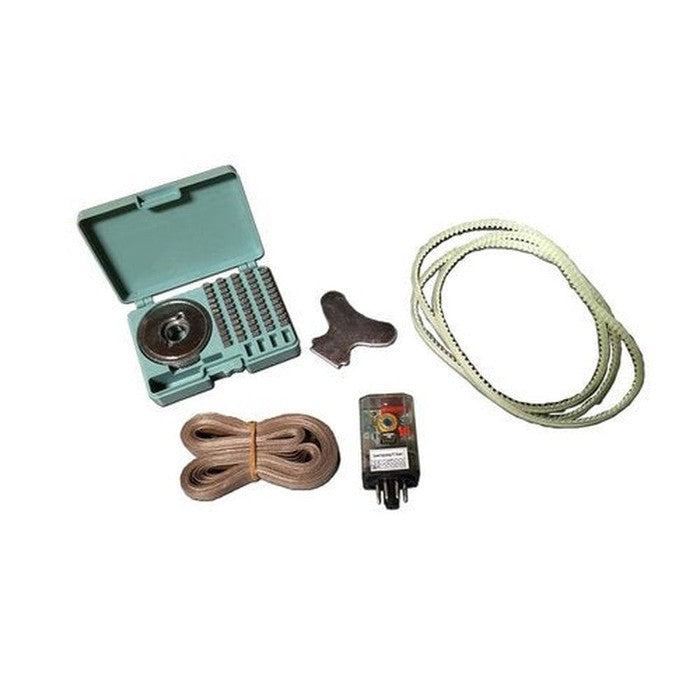

Manufacturer’s spare parts kit includes: PTFE sealing belt, drive belt, PC Board, tools, and and typesets (numbers 0-9 and letters EXD)
OPTIONAL FEATURES:
-
Smooth or serrated seal option
-
Stainless steel stand for horizontal units only
-
15mm seal width
-
Digital counter to keep track of sealed packages
Specifications:
Header 1 | Header 2 |
---|---|
Power | 110V / 60Hz |
Motor / Sealing Power | 50W / 300W x 2 |
Sealing Speed | 0-630"/min |
Seal Width | 10MM |
Temperature Range | 0-300°C |
Conveyor Size | 38" x 7" |
Max. Conveyor Load | Under 22-lbs |
Character Size | 3 x 4 x 9mm |
Optional Embossing | 1 Line Embossing (3 sections with 15 characters/line) |
Dimensions | 33" x 17" x 13" |
Weight (lbs) | 66 |
