Labelmate 1.575” diameter, 6.7” Length. Core Diameter: 1.575" - C76-170

Labelmate 1.575” diameter, 6.7” Length. Core Diameter: 1.575" - C76-170

Regular price $276.56
Regular price $295.00 Sale price $276.56
Sale Sold out
Shipping calculated at checkout.

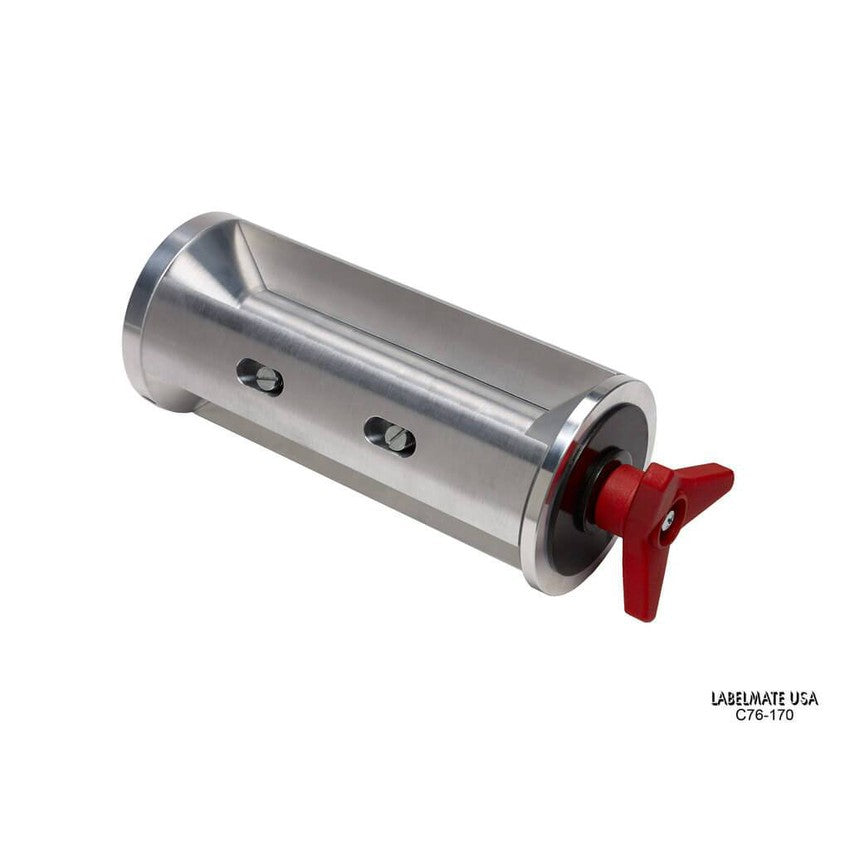

Mechanical Core-Chuck, 3” diameter, 6.7” Length.

  • Core Diameter: 3" (76mm)
  • Length: 6.7” (170mm)
  • Mounting: Setscrew, press fit
  • Mounting Hole Diameter: 0.626” (15.9mm)
  • Mounting Hole Depth: 1.33” (34mm)
  • Composition: Anodized Aluminum
  • Warranty: 3 Year Parts and Labor Limited Warranty

Description

This spring-loaded mechanical “Quick-Chuck” makes loading and unloading large rolls virtually effortless. The Chuck tightly grips the inside of the core while the roll is wound. Simply turn the knob clockwise (right) to expand/tighten the Chuck, and counterclockwise (left) to contract/release the Chuck. This “Quick-Chuck” fits precisely on a 0.625” (15.875mm) motor shaft. A setscrew locks the Chuck to the flat on the shaft.



Shipping Information

  • Size: 14”x6”x6” (355x152x152mm)
  • Weight: 4 lbs. (1.81 kg)
